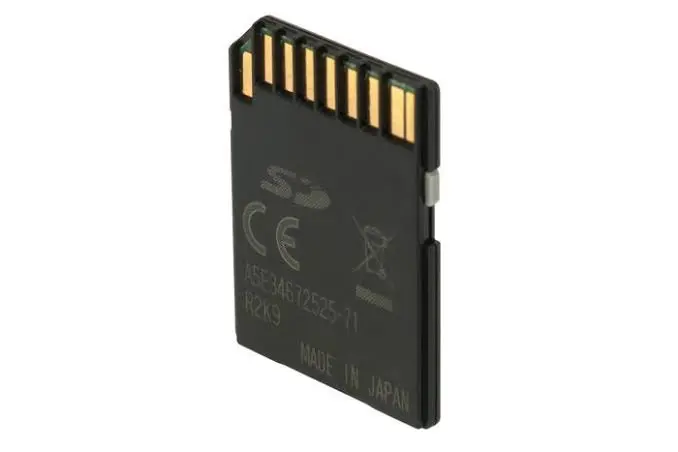

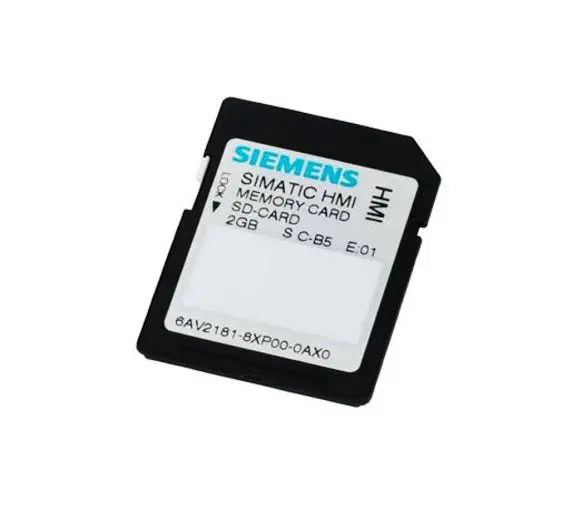

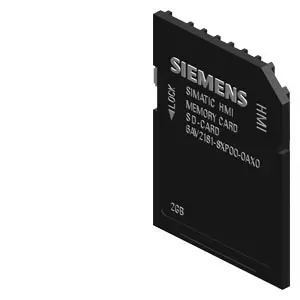

SIMATIC SD memory card 2 GB 6AV2181-8XP00-0AX0
| General information | |
| Product type designation | SD memory card |
| Control elements | |
| Frame size/design | |
| ● Standard | Yes; Typically 10 000 insertion cycles |
| ● Flat | Yes |
| Installation type/mounting | |
| Mounting position | Any, dependent on target device |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| Supply voltage | |
| Type of supply voltage | DC |
| Rated value (DC) | 3.3 V; Max 3.6 V |
| Input current | |
| Current consumption (rated value) | 100 mA; Typical, maximum value |
| Memory | |
| Type of memory | Secure Digital memory card |
| Memory size | 2 Gbyte |
| Transmission rate for reading, max. | 600 Mbit/s; Typical |
| Transmission rate for writing, max. | 600 Mbit/s; Typical |
| Wear leveling (distributed writing) | Yes |
| Write protection switch | Yes; Effectiveness depends on the device |
| Interfaces | |
| Device-side interface | |
| ● Number of pins device-side | 9 |
| Standards, approvals, certificates | |
| CE mark | Yes |
| UKCA mark | Yes |
| UL approval | Yes |
| cULus | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| RoHS conformity | Yes |
| China RoHS compliance | Yes |
| Marine approval | Yes; Passive component, therefore dependent on target device |
| Use in hazardous areas | |
| ● ATEX Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| ● ATEX Zone 22 | Yes; Always comply with the operating instructions of the target device. |
| ● IECEx Zone 2 | Yes; Always comply with the operating instructions of the target device. |
| ● IECEx Zone 22 | Yes; Always comply with the operating instructions of the target device. |
| ● cULus Class I Zone 2, Division 2 | Yes; Always comply with the operating instructions of the target device. |
| ● FM Class I Division 2 | Yes; Always comply with the operating instructions of the target device. |
| Marine approval | |
| ● Germanischer Lloyd (GL) | Yes; Always comply with the operating instructions of the target device. |
| ● American Bureau of Shipping (ABS) | Yes; Always comply with the operating instructions of the target device. |
| ● Bureau Veritas (BV) | Yes; Always comply with the operating instructions of the target device. |
| ● Det Norske Veritas (DNV) | Yes; Always comply with the operating instructions of the target device. |
| ● Lloyds Register of Shipping (LRS) | Yes; Always comply with the operating instructions of the target device. |
| ● Nippon Kaiji Kyokai (Class NK) | Yes; Always comply with the operating instructions of the target device. |
| ● Polski Rejestr Statkow (PRS) | Yes; Always comply with the operating instructions of the target device. |
| ● Chinese Classification Society (CCS) | Yes; Always comply with the operating instructions of the target device. |
| ● Compass working clearance | 5 m |
| Ambient conditions | |
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
