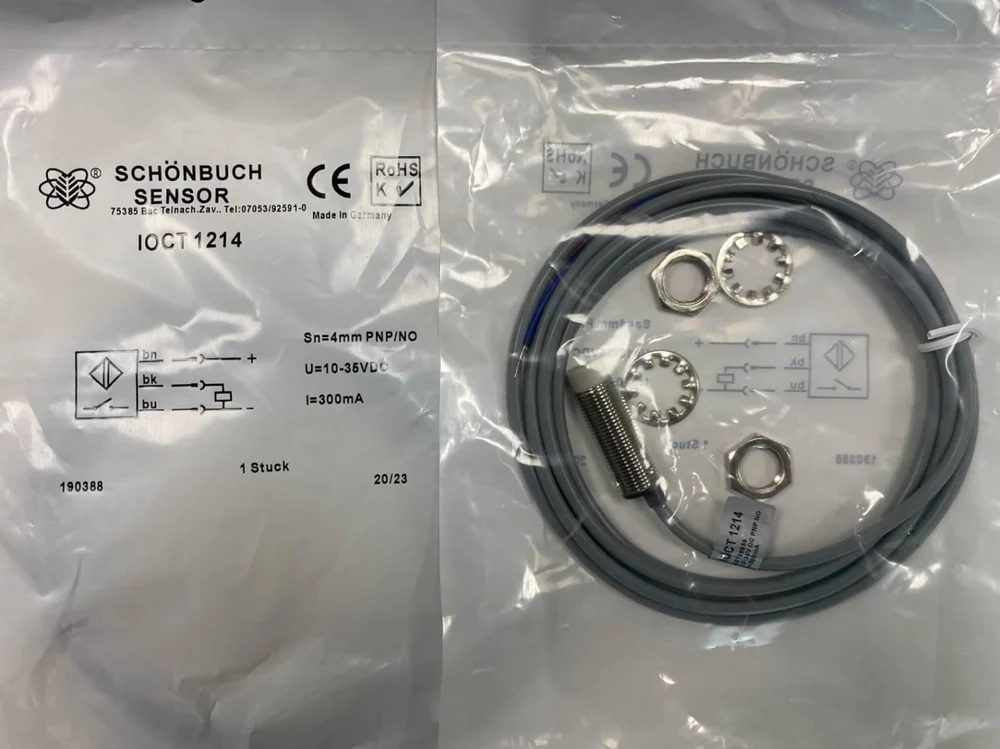

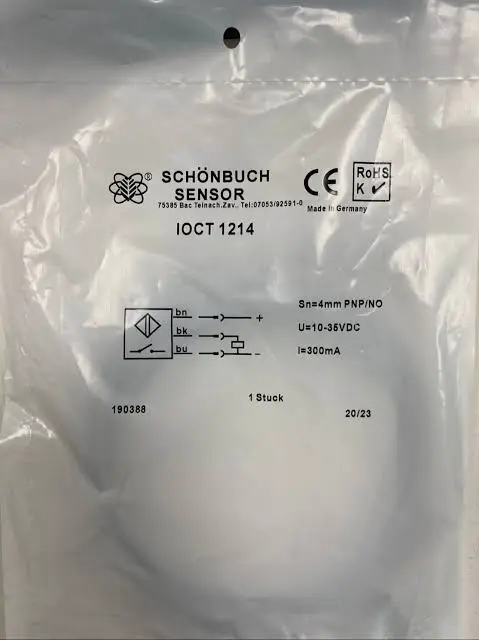

Schönbuch Inductive Proximity Sensors IOCT 1214 (DC Cylindric Sizes) M12 (PNP NO)

Technical specifications

Connection:2 m PVC/3 x 0,34 mm2
Connection type:cable
Outlet:PNP NO
Design:M12
Diameter:M12x1
Installation type:non flush
Short protection:yes
Length:24 mm
LED:yes
No-load current:10 mA
Nominal voltage:24 VDC
Reproducibility:1 %
Switching distance:4 mm
Switching frequency:1000 Hz
Switching hysteresis:15 %
Protection class:IP 67
Voltage drop:2 V
Voltage type:VDC
Voltage range:10 - 35 V
Ampacity:300 mA
Temperature drift:10 °C
Environment temperature:-25 bis 70 °C
Material:nickel plated brass
